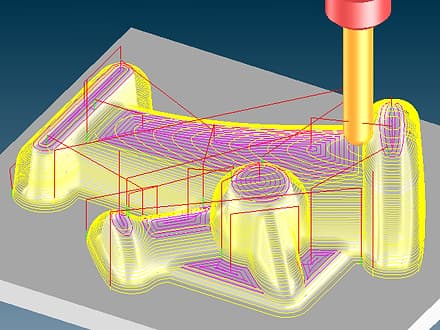

Milling Assistant
The euklid milling assistant (mas) offers high comfort for independent environment machining, fully controlling CNC machines.

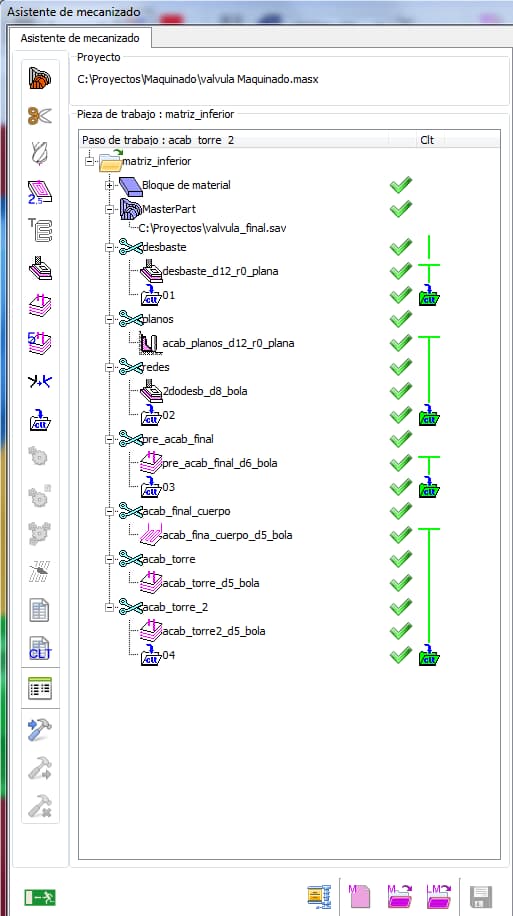

The milling assistant clearly separates the machining steps defined through calculations. The user defines all machining steps in well-organized forms and then starts the calculation. Calculations can be repeated as many times as desired. The next recalculation will recognize and recalculate only the steps affected by the modifications introduced. This lets you easily create company-specific variants of the milling assistant projects.

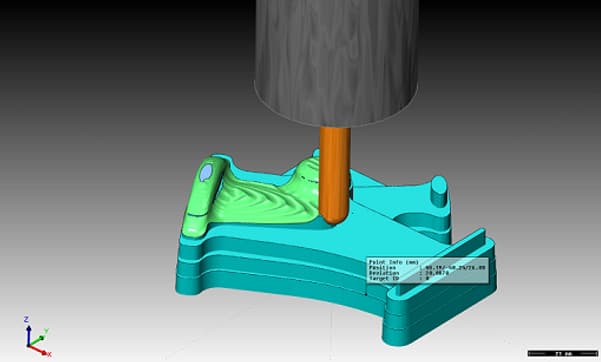

MASTER PROJECT
The Euklid milling assistant makes calculating family parts easy. In the milling assistant, you simply change the geometry file and Euklid cad/cam will automatically calculate new milling paths, according to the parameters set in the master milling assistant.

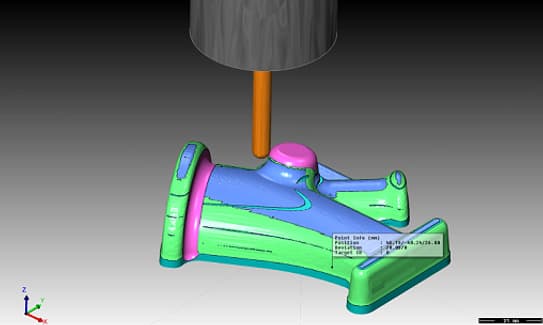

REPEATED PATTERNS
Repeated, identical sections of an NC program are calculated only once and then transformed in less than a second: translated elsewhere, mirrored, rotated or duplicated.
The Euklid milling assistant offers all possible transformations:
- Duplicate
- Move
- Rotate
- Mirror
DOCUMENTATION

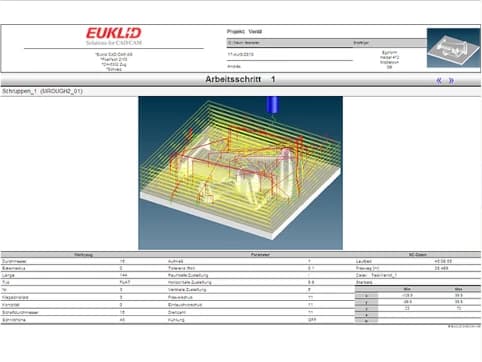

Euklid cad/cam's milling documentation offers detailed information on the machining sequences, including each step, in html or pdf format.

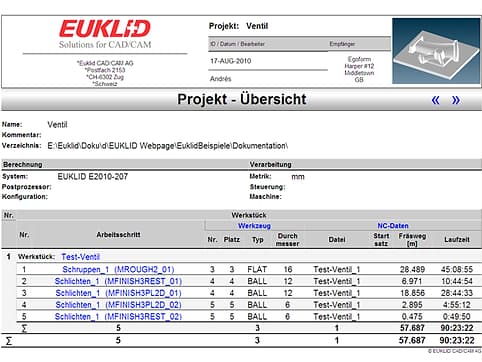

The euklid milling assistant reads all necessary data from the given nc programs. The following charts and tables are shown:
- Administrative data
- Table of contents
- CNC data (program number, start point)
- List of tools used

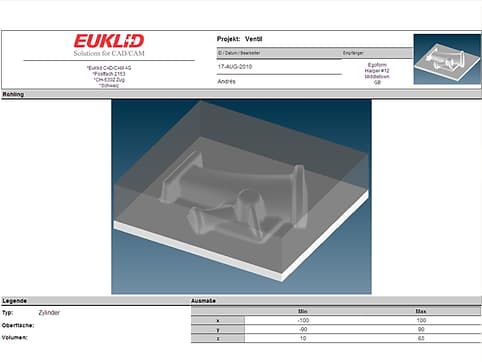

- Workpiece geometry
- Each individual work step (roughing, semi-finishing, finishing)
